LED Chip: | Cree XHP-50-2 Plug and Play field replaceable LED board |
Output: | 420 Lumens @ 700mA |
Lumens Per Watt: | 105 Lumens @ 4 watts |
Colour Temp: | 2700K, 3000K, 4000K |
CRI Warm White (3000°K): | 90+ |
Beam Angles: | 15°, 25°, 38°, 60° |
Ingress Protection: | IP66 |
Standards: | AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE |
Power Supply: | Remote (Series) Driver, Retro 110/240 volt driver |

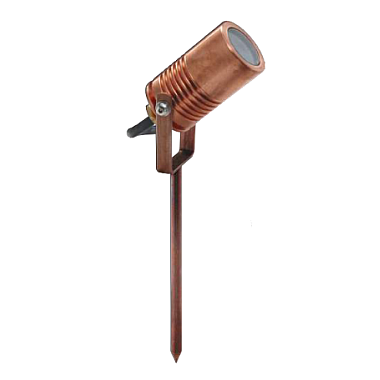

Hunza Euro Spike Spot
The Euro Spike Spot is an extra compact luminaire, designed for situations where the fixture needs to be very unobtrusive or concealed. The fixture is inserted into the ground and can be easily aimed by angling the head of the luminaire in the desired direction.
Machined from 45mm solid copper with a copper mounting bracket or 316 stainless steel with a stainless steel mounting bracket, and is available with a spike if required. Clear tempered glass lens with high temperature silicon gaskets and 3 metre submersible cable.
This low voltage landscape lighting product is suitable for use with an MR11 – 5, 10 or 20 watt lamp (max) and is supplied with a 20 watt high quality European 5000 hour lamp and built-in hex cell louvre.
Suitable for use with PureLED or retro fit LED lamps.
FINISHES
SPEC SHEETS
Euro Spike Spot PureLED
Euro Spike Spot
INSTRUCTIONS
Euro Spike Spot PureLED
Euro Spike Spot
PHOTOMETRICS
Euro Spike Spot 15°
Euro Spike Spot 25°
Euro Spike Spot 38°
Euro Spike Spot 60°
